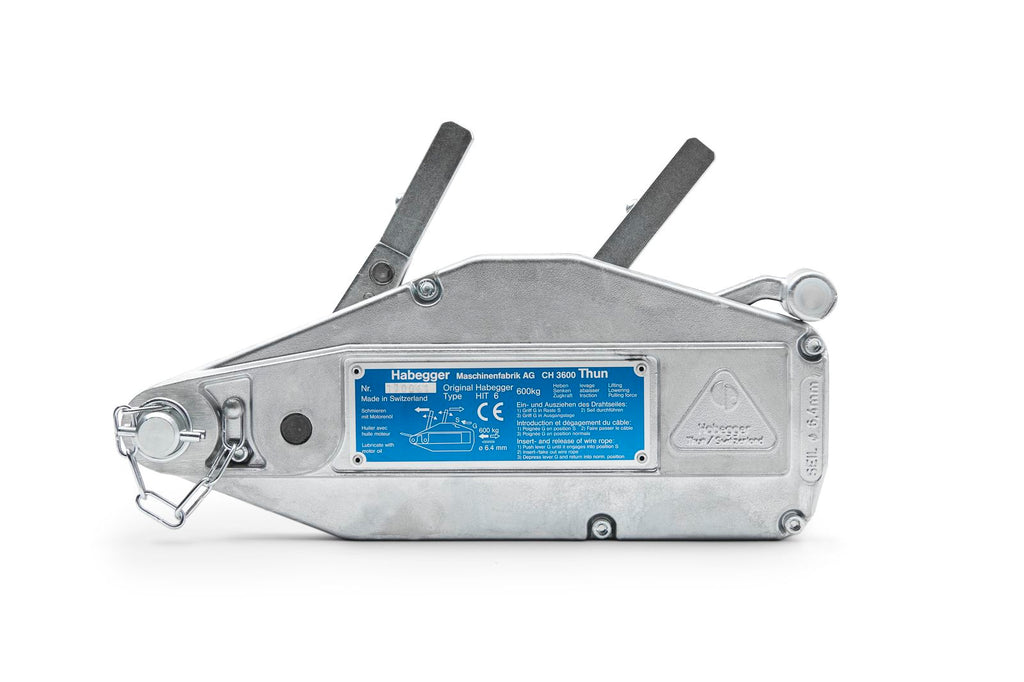

HABEGGER HIT-06

HABEGGER HIT-06

  • Sale
  • $433.32

The smallest and lightest unit for pulling, lifting and lowering

Technical Data

 HIT-06
Rated force (pulling, lifting, lowering) 600 kg
Overload protection at 900 kg
Weight without rope 4,2 kg
Rope diameter 6,4 mm
Effective rope breaking load 3000 kg
Rope feed per double stroke 30 mm
Load on lever at rated load 25 kg

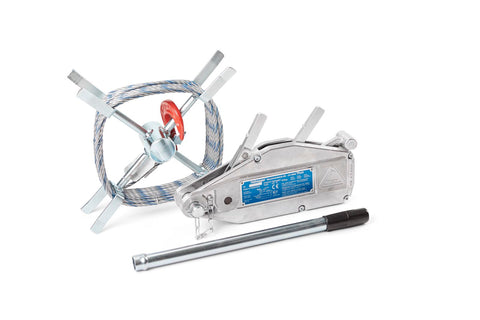

Basic equipment

 Article no.
Unit with lever tube,
10 m rope and 1 m strap
complete with case		 00598
Unit with lever tube,
10 m rope and 1 m strap		 00600
Unit with lever tube,
without rope		 00599
  • Light alloy housing
  • Anchorage bolts secured
  • Overload protection by shear pin
  • Exchangeable shear pins in jaw opening lever
  • Case available



 Wire ropes on reel

Diameter
Weight
 6,4 mm
0,16 kg/m
Length in m Article no.



10                                       02611
20         02613
