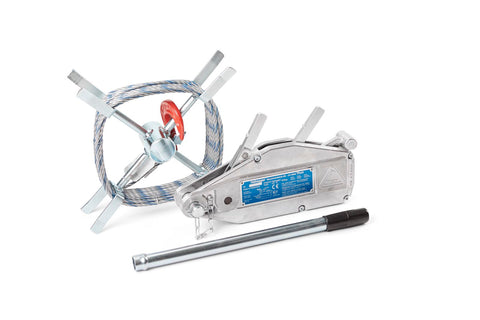

Unit Includes lever tube and operating instructions.
Unit DOES NOT include Rope (Sold Separately).
Case sold separately.
CONTACT US TO PLACE AN ORDER VIA FREIGHT SERVICE
SERVICE@JAKOB-USA.COM
+1 (561)3306502

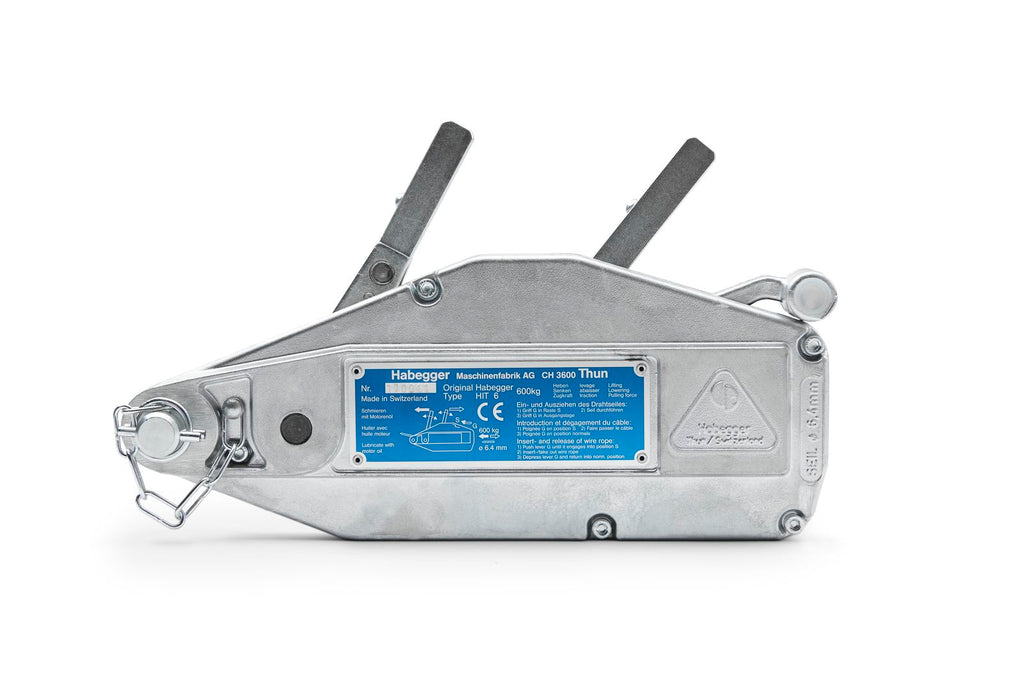

The powerhouse of the manual wire rope hoists.
Pulling force in excess of 3 tonnes.
- Light alloy housing
- Anchorage bolts secured
- Overload protection by shear pin
- Exchangeable shear pins in jaw opening lever
- Expansion for hydraulic drive
- With Handle
- Lever tube can be pulled out
- Storage case available.

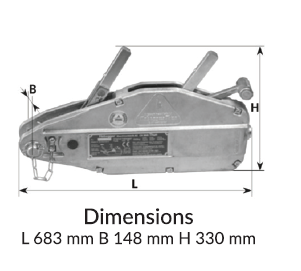

Technical Data HIT-32
|
|
Rated force goods transport Rated force persons transport |
3200 kg 12400 kg |
Overload protection at |
4800 kg |
Weight without rope |
21.5 kg |
Rope Diameter |
16.2 mm |
Effective rope breaking load |
16000 kg |
Rope feed per double stroke |
30 mm |
Load on lever at rated load |
50 kg |
